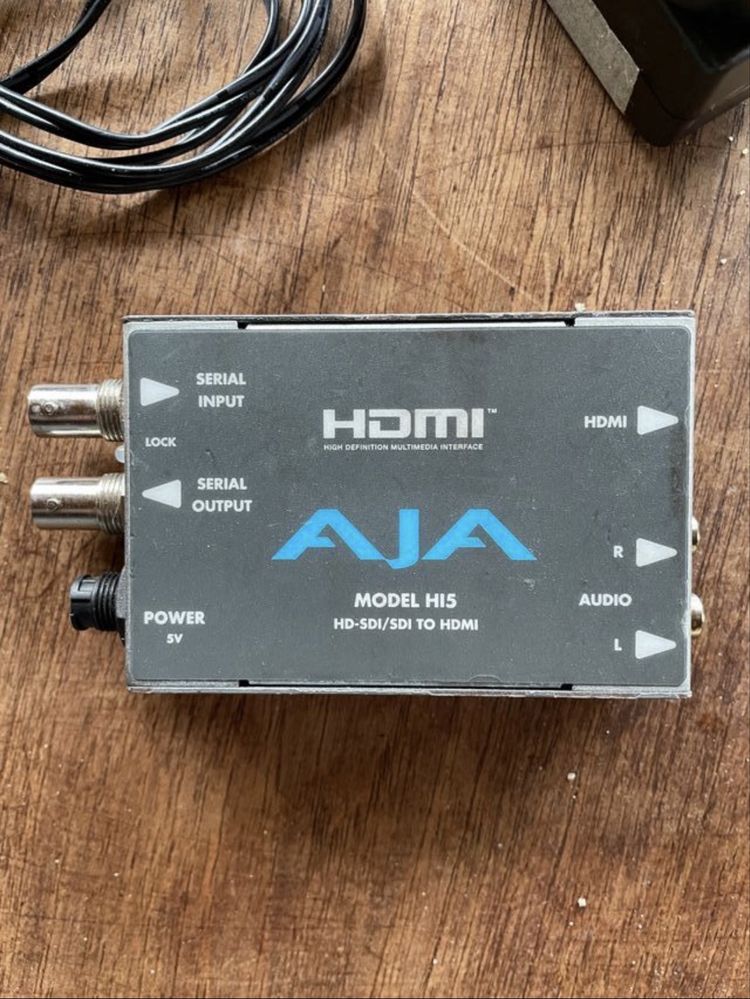

Inclui conversor Aja Hi5 e ligação para ficha EU

Video Formats
• (HD) 1080i 50, 59.94, 60
• (HD) 1080p 23.98, 24, 25, 29.97, 30
• (HD) 720p 50, 59.94, 60
• (SD) 625i, 525i
Input

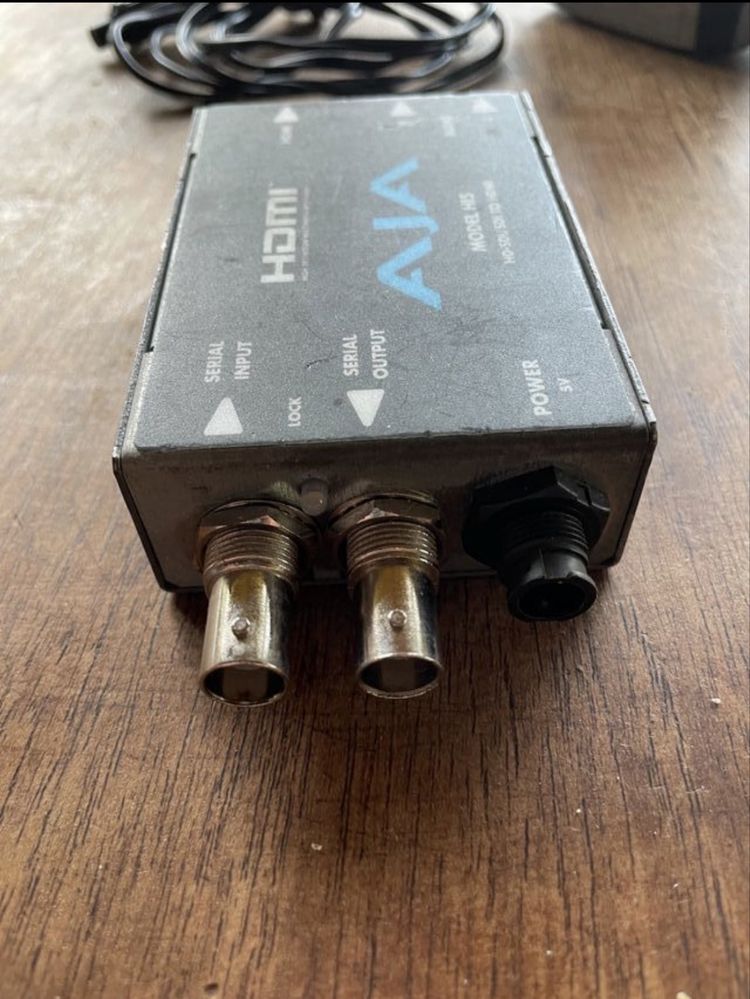

• SMPTE-259/274/292/296 SD/HD-SDI, 1 x BNC
Outputs

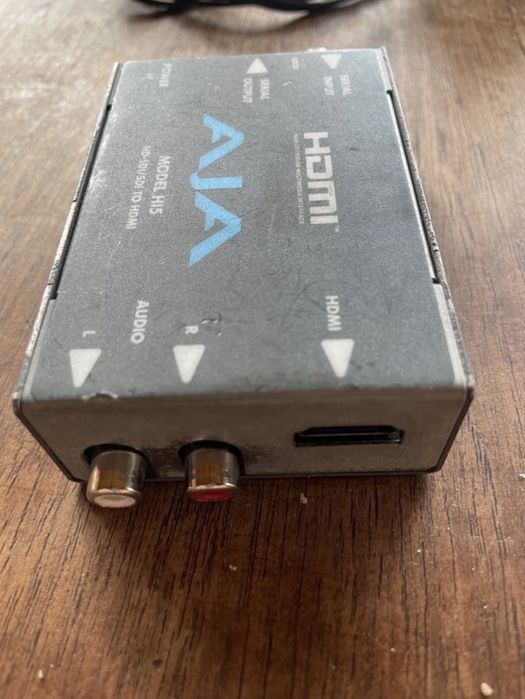

• HDMI with embedded audio, 24-bit (selectable by internal jumper: 2 or 8-Channels)
• Audio, 2-Channel RCA style outputs at -10dBu (nominal), Channel 1 and 2
• 1 Looping SD/HD-SDI output of the SDI input (75 ohm, unterminated)
HDMI
• Standard Type A connector
• Video:
• 8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)
• Audio:
• 24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
HDCP
• The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SD/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
Size (w x d x h)
• 4.6" x 2.4" x 1" (117mm x 61mm x 25mm)
Power

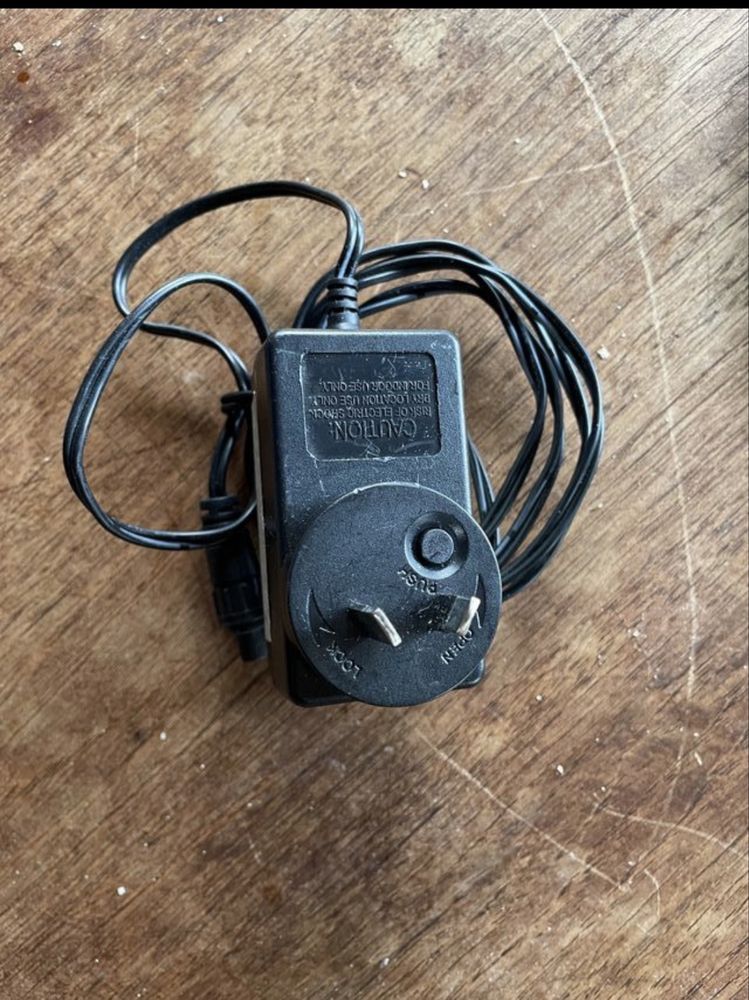

• +5VDC Regulated, 3 Watts, power supply required, included with purchase
