PV Input power: 720W(12V Battery);1440W(24V Battery);2160W(36V Battery);2880W(48V Battery)

Max Solar Input(Voc :15-25V(12V Battery);30-50V(24V Battery);45-75V(36V Battery);60-100V(48V Battery)

Charging Current:60-100A

Battery Voltage:12V/24V/36V/48V Auto

Controller parameter:

8. The controller still discharges under low voltage protection. Touch-holding for 5 seconds, discharge continues to output. But discharge is only stopped by hand. Notice that this performance may damage the battery, be careful with it!

7. Test mode: it is the same as light and time delay control mode but only loses ten minutes of time delay.

6. Timing control mode: it opens or closes the discharge regularly.

5. Manual control mode: it uses for discharging or not.

4. Universal control mode: under the trouble-free condition, it always keep discharging.

3. Light and time delay control mode: when the controller detects nights, it will delay ten minutes then start to discharge and count down, if the timer stops by zero, discharge will stop. The longest duration of delay is 23:59.

2. Light control mode: when the controller detects nights, it will delay ten minutes then start to discharge; when it detects daytime, it will delay ten minutes then stop discharging.

1. Charging mode: in any case, never discharge.

7 kinds of working mode selection

12, with backlight display

11. Some of the controller parameters can be modified by the user to set and save.

10. Controller parameters display (working mode, battery voltage, PV charging current, battery discharging current, product working temperature, delay time);

9. 7 kinds of working mode selection

8. Over temperature protection

7. Over-current protection

6. Over-voltage protection

5. 12V/24V/36V/48V automatic identification

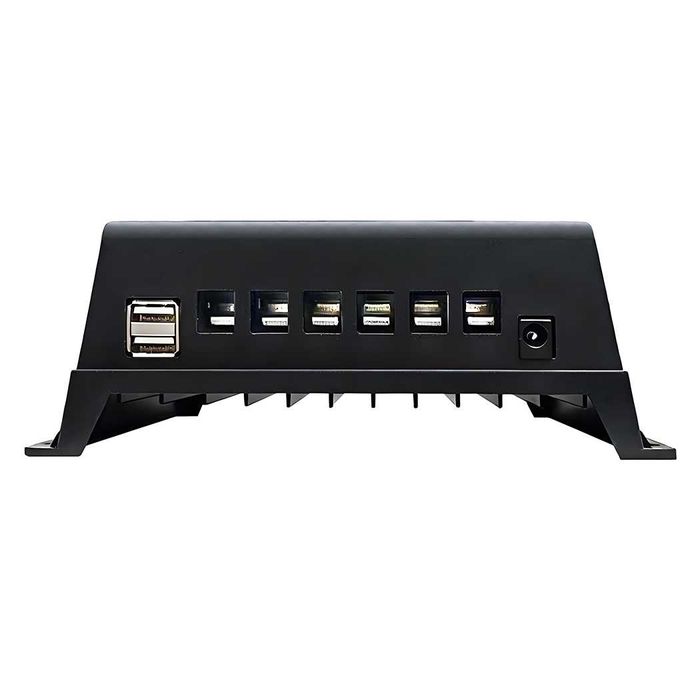

4. Dual USB 5V charging ports

3. Compatible with Seal, GEL, Flooded, LifePO4 battery charging

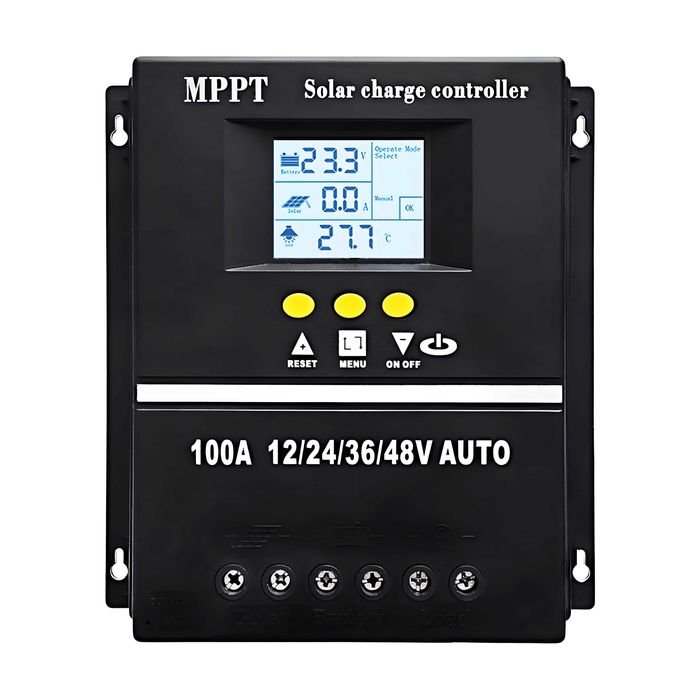

2. The LCD is designed to dynamically display the operation data and working status of the equipment.

1. Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%
