Tracer MPPT Solar charge controller controller controller controller
Tracer series 40A mppt solar controller adopts MPPT technology (Maximum Power Point Tracking). The advanced tracking algorithm
make the solar panel operate at ideal voltage which the solar panel can produce the maximum available power. Compared to conventional
PWM solar controller, MPPT solar controller technology increase charge efficiency up to 30% and decrease the power of solar array needed.
Tracer mppt solar controller has the ability to step-down the higher voltage solar array to recharge a lower voltage battery bank. Max.100VDC
input. So it allows on grid solar panels or thin film Amorphous Solar Panel to charge the off-grid battery. And the cable size can be reduced
because of the small current from the solar array.'

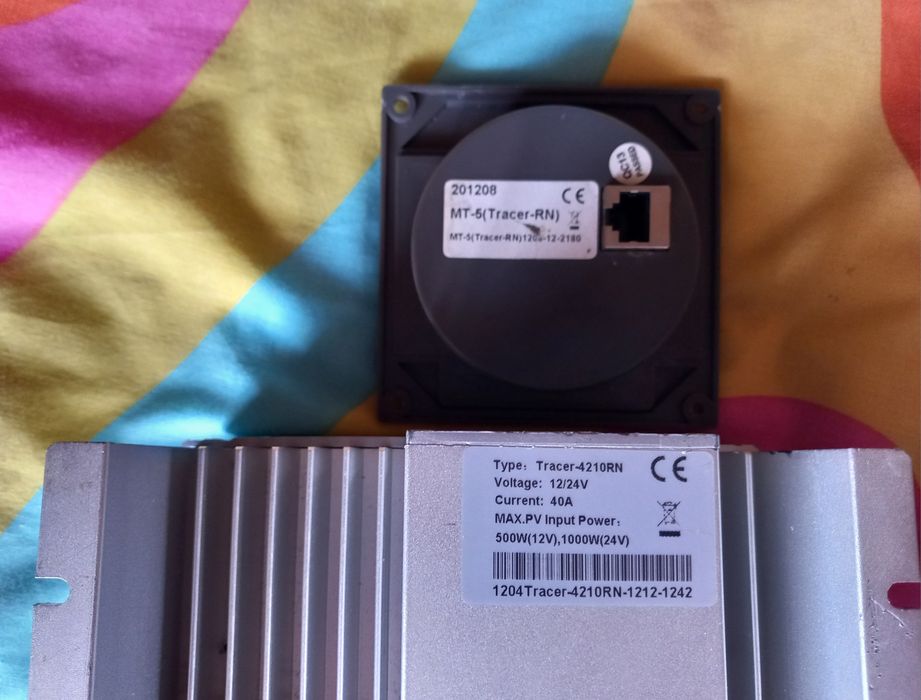

Tracer 4210RN MPPT Solar Controller Controller Controller Controller Feature: Feature: Feature: Feature:
·MPPT technology
·Two Color Black and Silver Optional
·Peak conversion efficiency of 97 %
·High Tracking efficiency of 99%
·Several seconds tracking speed
·Very fast Sweeping of the entire I-V curve
·4- Stage charge with PWM output
·Excellent thermal design and nature air cooling
·Full power output in ambient temperatures up to 45℃
·Temperature compensation function
·Sealed, Gel, Flooded battery type optional
·Diversified load control: Manual, Dusk to Dawn, Dual timer, TEST
·RJ45 interface with remote meter MT-5 (optional)
·ON/OFF, Dusk to dawn, 1-15h timer
·Max PV input power 520W for 12V system, 1240W for 24V system
