Screen size 7´´ digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480

Color configuration RGB stripe
Power input DC 12/24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 184x129x32 mm
Display : 154 x 93 mm
Video input signal 1.0Vp-p, composite video
Brightness 400 cd/m²
Contrast 350:1
Vibration IEC68-2-6
Operating Temperature 0° bis 70°C
Features Full function OSD control
Built-in Stereo-speakers
Auto Power On/Off
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)

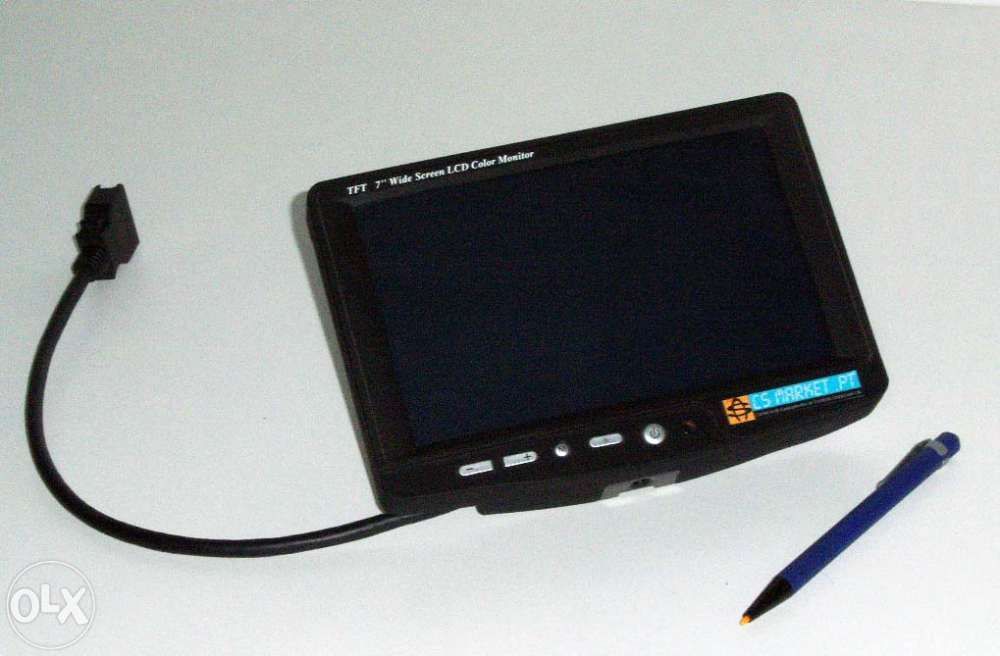

What is included ? - 7´´ VGA Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
