Descrição
Main principle
Superheterodyne (common); ZF/IF 9720 kHz
Wave bands
Wave Bands given in the notes.
Power type and voltage
Storage Battery for all (e.g. for car radios and amateur radios) / 28 Volt
Loudspeaker
- For headphones or amp.
Power out
10 W (unknown quality)
Material
Metal case
from Radiomuseum.org
Model: Receiver-Transmitter RT-18/ARC-1 - Western Electric Company Inc.;
Shape
Rack
Dimensions (WHD)
265 x 195 x 548 mm / 10.4 x 7.7 x 21.6 inch
Notes
Tubes listed only once per Type
Frequency Range:100-156MHz(AM)
The RT-18 is the receiver-transmitter of radio set ARC-1A. It uses a Collins mechanical autotune to tune the set for the 10 crystal controlled channels. The radio has an IF of 9,72MHz, and uses the same crystal for transmit (mixed with a 9,72 MHZ crystal oscillator) and receive
The equipment is designed for remote operation in a plane and requires 28 volts at 7 amperes during reception, and 10 amperes on transmit.
Net weight (2.2 lb = 1 kg)
20.2 kg / 44 lb 7.9 oz (44.493 lb)
Superheterodyne (common); ZF/IF 9720 kHz
Wave bands
Wave Bands given in the notes.
Power type and voltage
Storage Battery for all (e.g. for car radios and amateur radios) / 28 Volt
Loudspeaker
- For headphones or amp.
Power out
10 W (unknown quality)
Material
Metal case
from Radiomuseum.org
Model: Receiver-Transmitter RT-18/ARC-1 - Western Electric Company Inc.;
Shape
Rack
Dimensions (WHD)
265 x 195 x 548 mm / 10.4 x 7.7 x 21.6 inch
Notes
Tubes listed only once per Type
Frequency Range:100-156MHz(AM)
The RT-18 is the receiver-transmitter of radio set ARC-1A. It uses a Collins mechanical autotune to tune the set for the 10 crystal controlled channels. The radio has an IF of 9,72MHz, and uses the same crystal for transmit (mixed with a 9,72 MHZ crystal oscillator) and receive
The equipment is designed for remote operation in a plane and requires 28 volts at 7 amperes during reception, and 10 amperes on transmit.
Net weight (2.2 lb = 1 kg)
20.2 kg / 44 lb 7.9 oz (44.493 lb)
ID: 674201764
Contactar anunciante
xxx xxx xxx
Publicado 08 de outubro de 2026

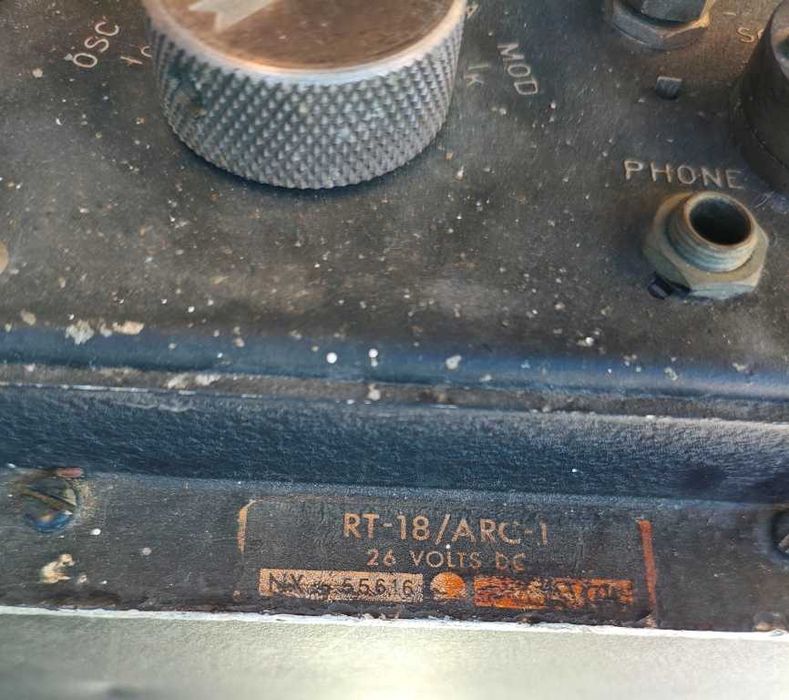

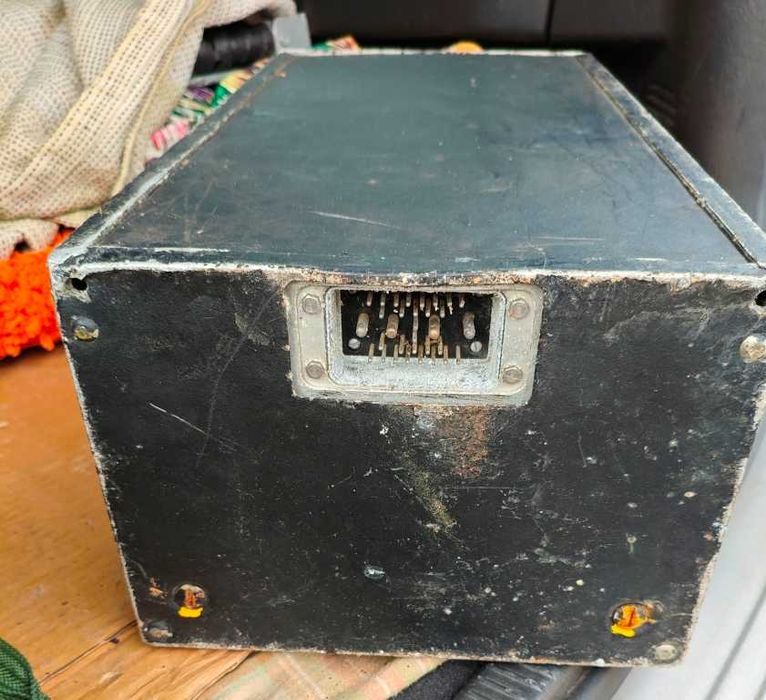

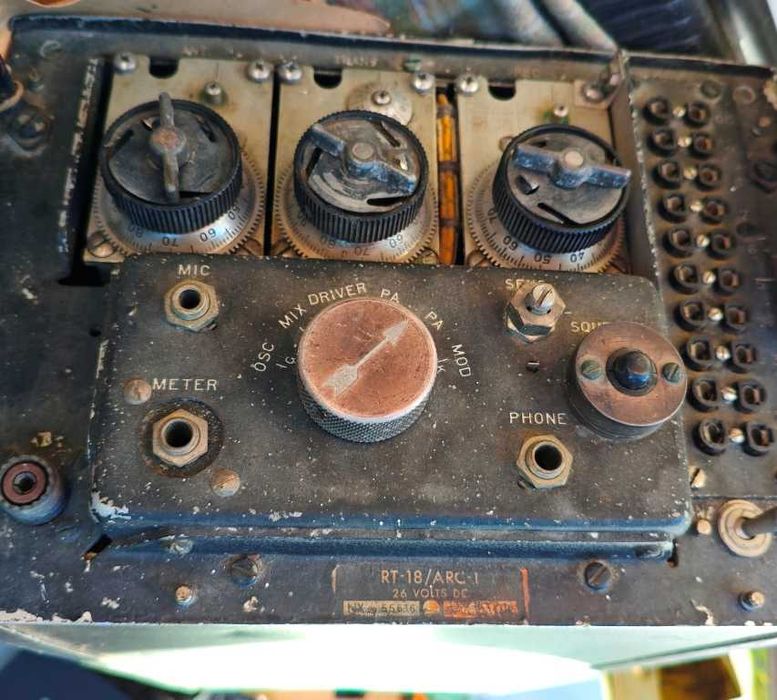

Emissor militar de avião RT-18 ARC-1 (para restauro)
