The HDMI & IR Cat.6 Extender is a simple to use plug and play solution which lets you extend an HDMI AV signal up to 50m using a single low cost Cat.6 UUTP cable (not included). For added convenience IR signals (20-60 kHz) can also be extended using the supplied IR Receiver and Emitter cables. Supporting resolutions up to Full HD 1080p, including 1080p 3D, the Extender is designed for use in AV and digital signage applications in a variety of settings such as home, education, business, retail and healthcare.

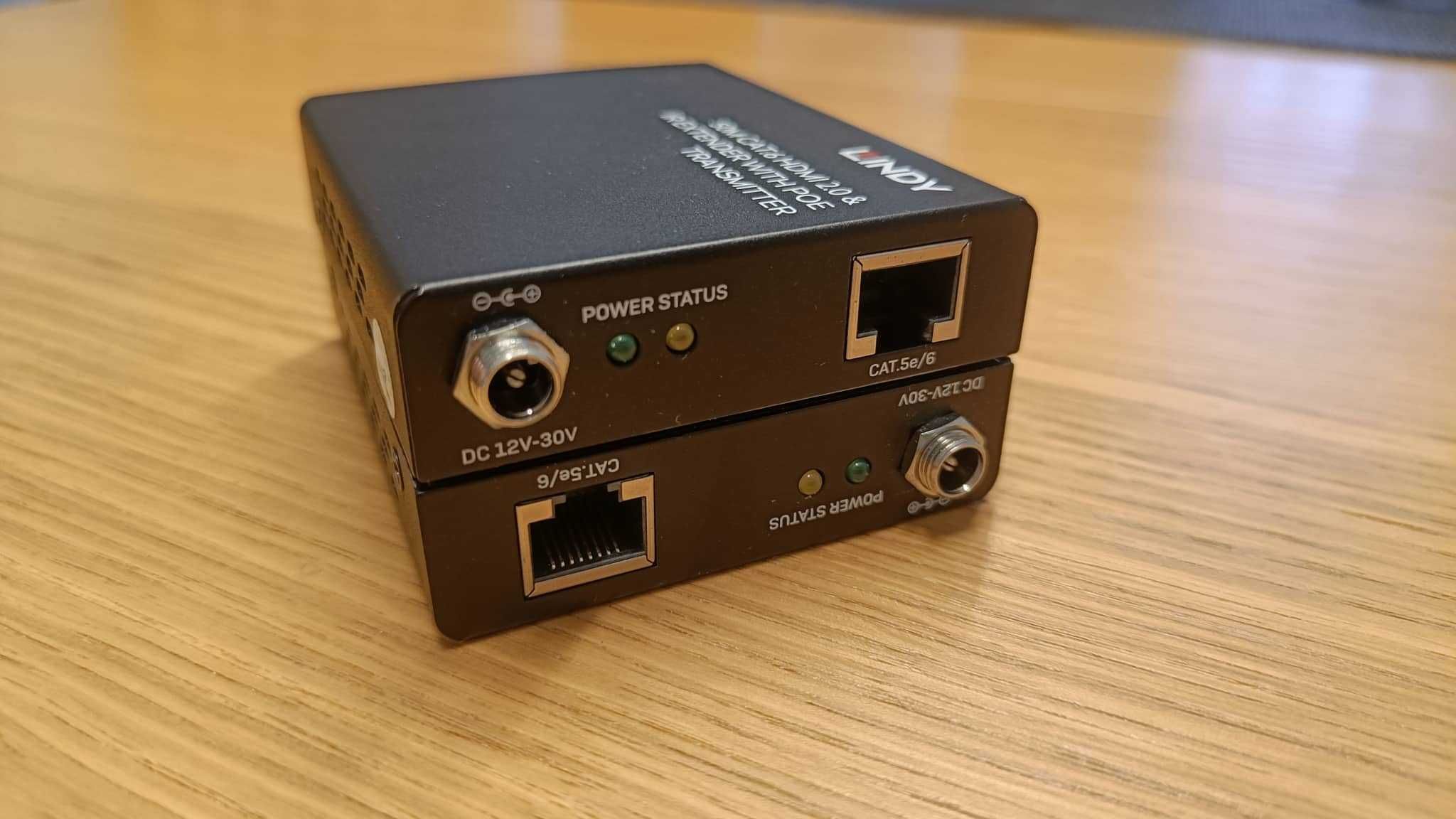

The extender uses two modules - one transmitter and one receiver. The transmitter connects to an HDMI source by means of a standard HDMI cable. The receiver connects to a display in the same way. Between the two modules, a low cost CAT5e/6 cable is used to transmit the video and audio signals.

Extends HDMI 1.4 & IR Signals up to 50m* using a single Cat.6 Cable
Supports resolutions up to Full HD 1080p, including 3D
Features a loop-through HDMI output on the Transmitter for local monitoring
Supports power over Cat.6, only a single power supply is required

Technical Specifications
Extends HDMI 1.4 (including HDCP) & IR signals via Cat5e/Cat6 UTP Cable
Connection is via cat.5e/6/7 cable, up to 50m (CAT6 solid core recommended)
Local HDMI output allows local & remote displays to be used simultaneously
Supports resolutions up to Full HD 1080p 60Hz (4:4:4 at 8bpc, 4:2:2 at 12bpc)
Supports Full HD 1080p24 3D according to HDMI 1.4
Audio Formats: LPCM, DTS Digital, DTS HD, Dolby Digital & Dolby True HD
PoC (Power over CAT6) feature requires only a 5V 1A PSU to be attached
Supports 20 – 60kHz IR Frequencies
Maximum HDMI cable length: 3m in/out
EDID can be selected from either the remote or local display
Adjustable EQ to match CAT5e/6 cable length
Transmitter ports: HDMI Type A In, 1x CATX Out, 3.5mm IR Out & DC Socket
Receiver ports: HDMI Type A Out, 1x CATX In, 3.5mm IR In & DC Socket
Power consumption: 5W max
