SEM CAIXA
ALGUNS RISCOS DE USO
CABO INPUT USB
CABO DE ENERGIA UK

Digital Connectors:
Input: Asynchronous USB (XMOS) 24bit 192khz, DSD2.8Mhz / 5.6Mhz.
Sampling Rate PCM: 16-24Bit / 44.1kHz 48kHz 88.2kHz 96kHz 176.4kHz 192kHz.
Operating systems: Windows XP / Vista / 7/8 / 8.1 (driver required).
Mac OS X 10.6.4 (and lower native support without drivers).

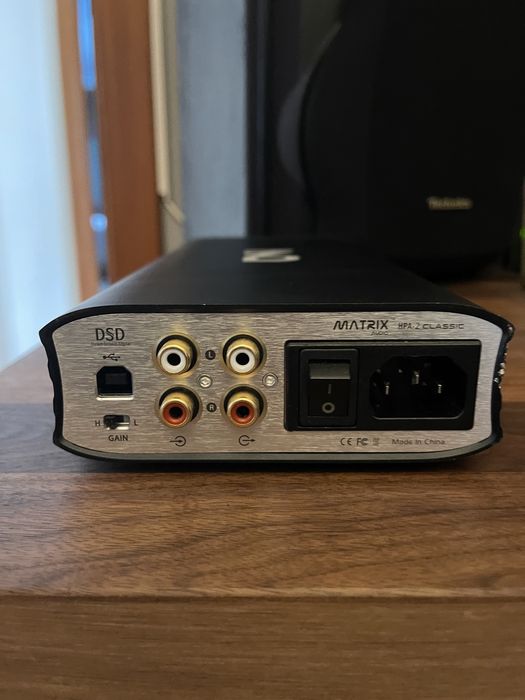

Analog Connectors:
Input: RCA Stereo.
RCA Stereo Outputs.

Specifications:
SNR " - 95dB at 20Hz-22kHz Class A.
THD + N> 0.0017% at 1kHz 1VRMS Class A.
Frequency response: 20Hz-20kHz (+ 0.01dB / -0.04dB).
Output impedance: 51ohms.

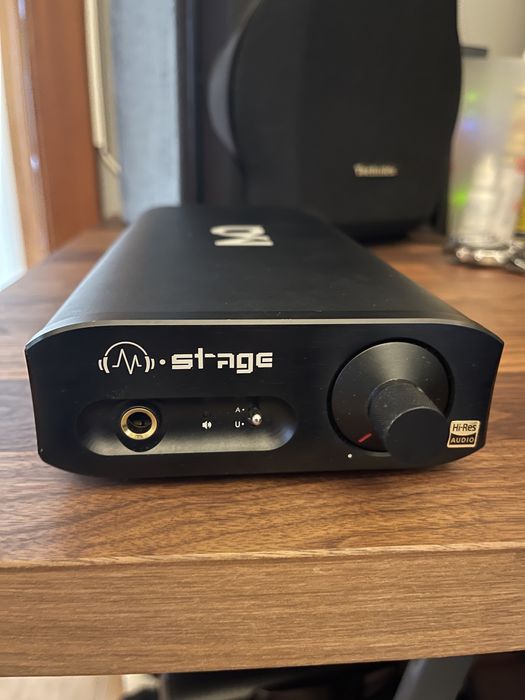

Output Headphone asymmetrical (jack 6.35):
SNR " - 95dB Class A.
THD + N 0.0017% at 300ohms 13mW 1kHz Class A.
Frequency response: 20Hz-20kHz (+ 0.01dB / -0.04dB).
Output impedance: 10ohms.
Output power: 110mW at 33ohms / 310mW at 300ohms / 160mW at 600ohms at THD + N = 1%.

Gain Settings:
Gain: Low + 6dB, High + 15dB.

Consumption:
15w. li="">
Fuse: AC250V / 500mA 5x20mm.

Dimensions:
280 × 120 × 47mm W × W × H.
Weight: 1.22kg.

Accessories :
Power cord × 1.
USB cable × 1.
