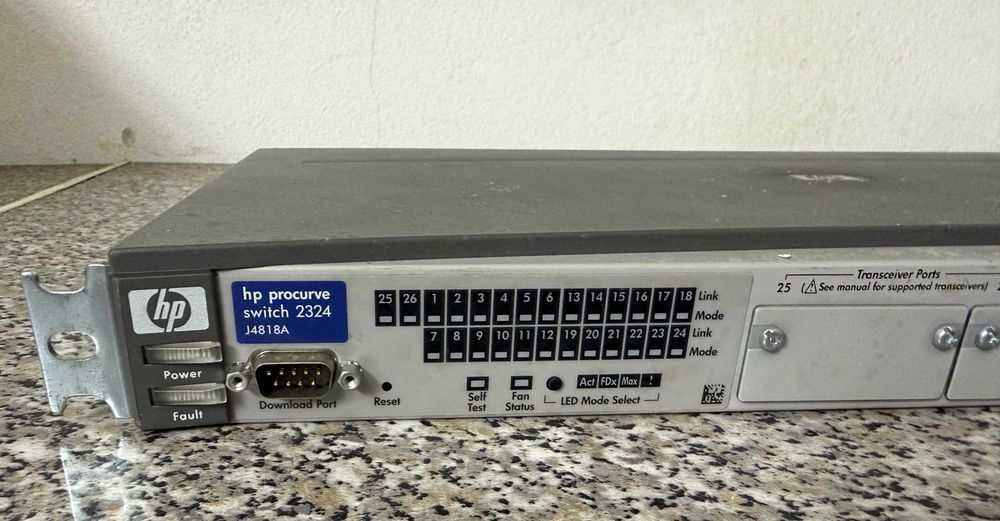

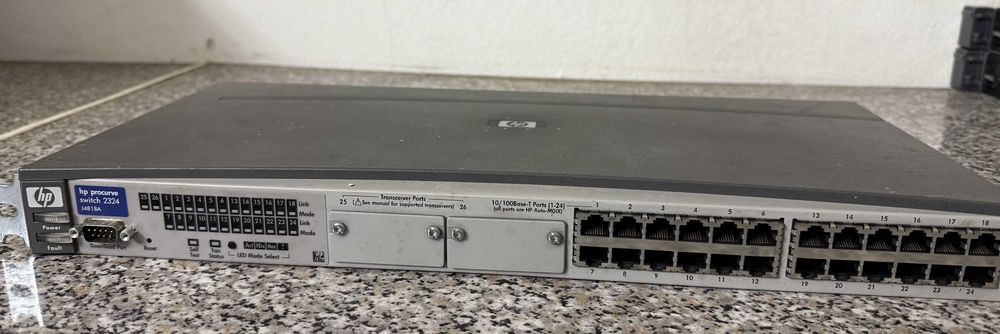

HP Procurve Switch 2324 J4818A Low-cost, unmanaged 24- and 12-port switches with 10/100 autosensing per port and 2 open transceiver slots for media flexibility. The HP Procurve switch 2324 and 2312 are ideal for low-cost, unmanaged 10/100 connectivity with uplinks.

General Information
Manufacturer Hewlett Packard
Manufacturer Part Number J4818A#ABA
Product Line ProCurve
Product Name ProCurve 2324 Ethernet Switch
Marketing Information - Unmanaged 9.6 Gbps switch fabric integrated on-chip
- Lifetime warranty: for as long as you own the product, with next business day advance replacement (available in most countries)
Manufacturer Website Address www.hp.com
Networking
Device Type Ethernet Switch
Ports 24 x 10/100Base-TX LAN
Ports Details
1 x DB-9 Serial Port(s) Management
24 x RJ-45 10/100Base-TX Port(s) Auto MDI/MDI-X LAN
Expansion Slots 2 x Expansion Slot(s)
Slots Details 2 x Expansion Slot(s)
Media & Performance
Connectivity Media Twisted Pair 10/100Base-TX
Data Transfer Rate
10Mbps Ethernet
100Mbps Fast Ethernet
Performance
9.6Gbps Switching Fabric
6.6Mpps Throughput for 64-byte Packet(s)
Protocols & Management
Management - Unmanaged: provides plug-and-play simplicity

Processor & Storage
Processor 1 x ARM7TDMI 62.5MHz
Memory
26MB Main Memory
2MB Flash Memory
Address Table 4K MAC Addresses
Miscellaneous
Additional Information - Latency: 10 ?s (LIFO)
Certifications & Standards - IEEE 802.3-LAN
- IEEE 802.3U-LAN
