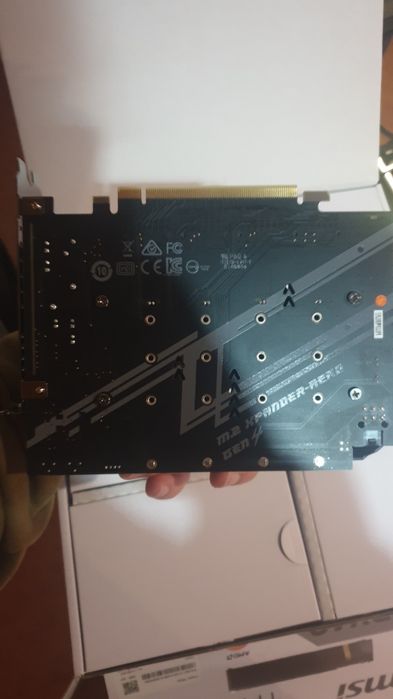

Expansor de armazenamento M.2
Com espaço para 4 M.2 para que aumente o seu amazenamento sem perder velocidade.

COMPATIBILITY
Suggest to work with Intel LGA2066 Core i9/ i7 (44-Lanes) and AMD Ryzen Threadripper processors for the best performance

INTERFACE
PCI Express 3.0 x16 interface
Compatible with PCI Express x16 slot
EXTERNAL CONNECTORS
4 x M.2 slot (Key M)
Supports up to PCIe 3.0 x16 bandwidth
Supports 2242 / 2260 / 2280 / 22110 storage devices (PCIE SSD only)
Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card
1 x 6-pin ATX PCIe power connector
1 x 4-pin FAN power connector
1 x LED Switch
1 x FAN Switch
4 x 2-pin NTC Thermistor
2 x 2-pin Front panel
Connect to the switches and HDD LEDs

LED
4 x M.2 easy access LEDs - these LEDs will flash when any M.2 SSD be accessed.
6 x M.2 temperature detection LEDs - these LEDs will change color according to the temperatures of M.2 SSDs.
Red color - 65 °C and up
Orange color - 55 ~ 64 °C
Yellow color - 45 ~ 54 °C
Green color - 35 ~ 44 °C
Blue color - 25 ~ 34 °C
RAID SUPPORT
Intel VROC Ready with Intel RSTe for X299 Series motherboards
DIMENSIONS
175x135x38.8 mm
ACCESSORIES
1 x HDD LED Cable
