NanoVNA-F V2 Antenna Analyzer, 4.3 Inch NanoVNA V2 Vector Network Analyzer 3G Upgrade Version NanoVNA with 5000 mAh Measurement Parameters Voltage SWR

Measuring frequency: 50 KHz - 3 GHz.

Display: 4.3 inches, resolution 800 x 480 cm.

Battery: 5000 mAh lithium-ion battery.

RF output power: -9dBm (error within 1GHz: ±1dB).

Frequency accuracy: 0.5 ppm.

S21 dynamic range: 70 dB (1.5 GHz), 60 dB (3 GHz).

S11 dynamic range: 50 dB (1.5 GHz), 40 dB (3 GHz).

2-port return loss: 20 dB type (1.5 GHz), 13 dB min (3 GHz).

Number of calibration points: 101 points.

Number of scan points: 101 points.

Number of tracks: 4.

Number of marker points: 4 (the marker point bar can be moved up and down on the screen)

Setting Memory: 5 groups (after saving it can be retrieved directly next time use, no recalibration required,
and the stored parameters before the last shutdown are automatically retrieved the next time you turn it on).
Supports interpolation of calibration results, can measure without recalibration after the measurement frequency band has been adjusted

Scan time: approx. 1.9 s / 1 time (50 kHz ~ 3000 MHz full frequency band).

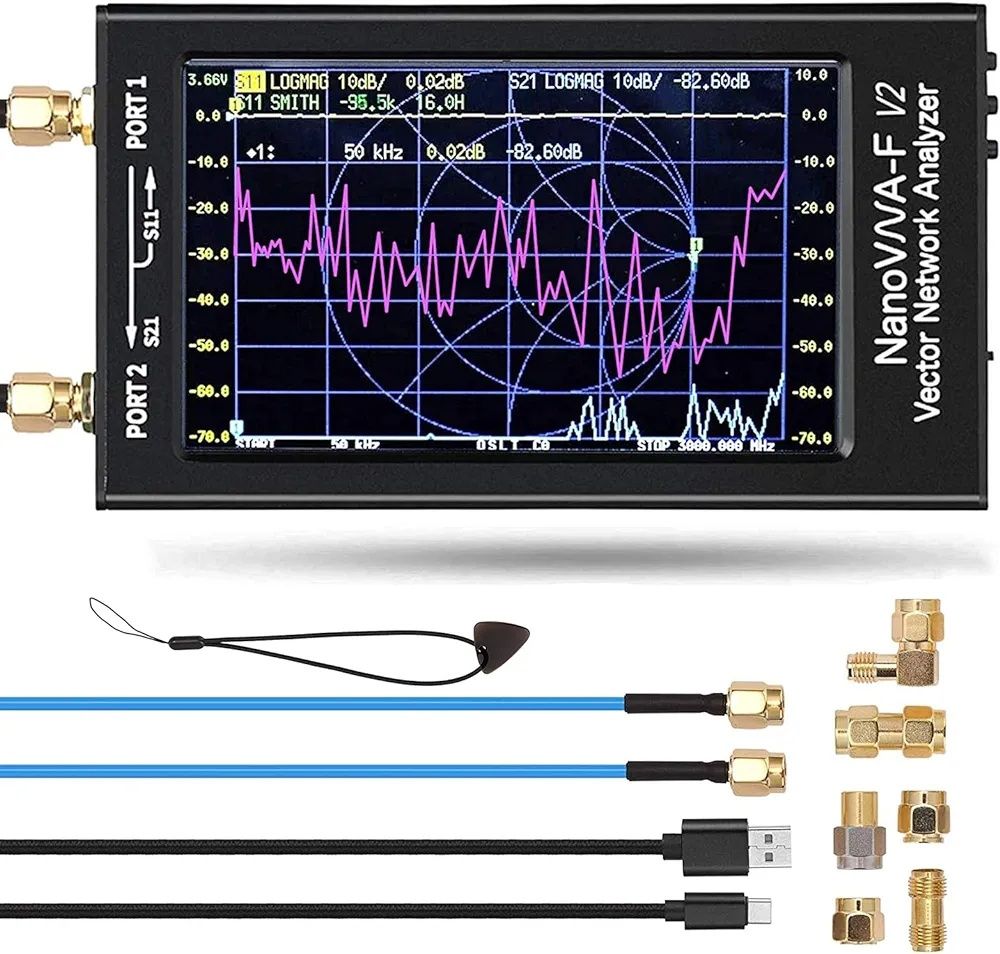

Box contents:

1 x host.

1 x SMA calibration kit (SMA open / short / 50 ohm load).

1 x SMA KK double head socket adapter.

1 x SMA-JJ double head pin adapter.

1 x inner hole of the outer screw of the SMA JKW angle screw to the inner needle adapter of the inner screw.

2 x 200 mm SMA-JJ RG405 RF cable.

1 x USB Type-C data cable.

1 x pen.

Features & details

4.3 inch large screen: NanoVNA-F V2 has a 4.3 inch IPS TFT LCD screen with a resolution of 800 x 480, can measure S parameters, standing wave ratio SWR, phase card, group delay, Smith chart etc. The NanoVNA V2 3GHz is equipped with a touchscreen paddle for easy operation.
Improved frequency range: the 3 g NanoVNA-F has a measuring range of 50 k-3 GHz, which is larger than the old version. The TX/RX method can measure the complete S11 and S21 parameters, S21 dynamic ranges: 70dB (1.5GHz), 60dB (3GHz); S11 dynamic ranges: 50dB (1.5GHz), 40dB (3GHz).

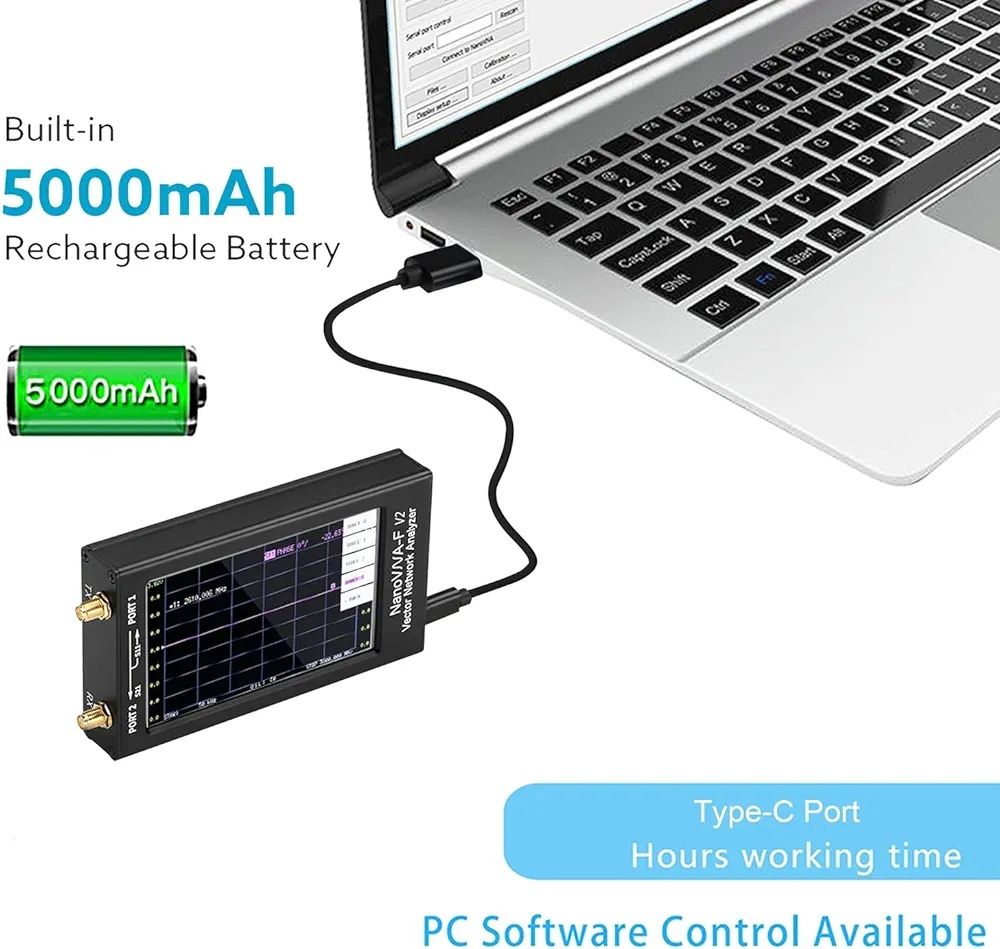

5000 mAh battery and longer standby time: the 5000 mAh large battery of the antenna analyzer has a longer standby time of up to 7 hours. If it is not used as a meter, it can be used as a power supply to charge your mobile phone.
Metal housing design: the vector network analyzer uses a metal shielding design to reduce external interference and improve measurement accuracy. The strong aluminium alloy makes it more durable.

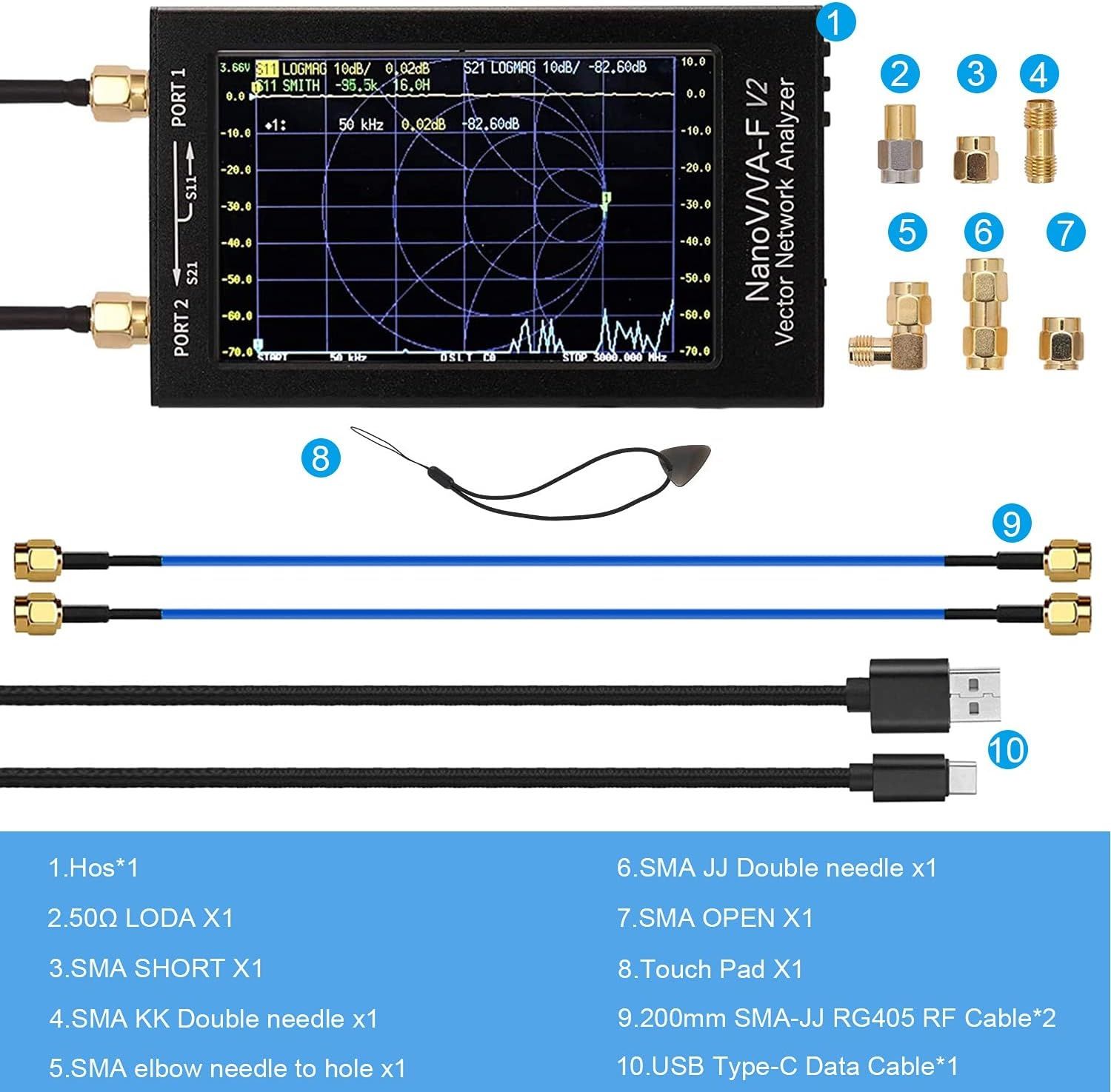

Package includes: NanoVNA Host x1; 200 mm SMA-JJ RG405 RF Cable x2; SMA Calibration Kit Open/Short/50Ω Load x1; SMA-KK Double Head Inner Hole Adapter x1; SMA-JJ Double Head Male Pin Adapter x1; SMA-JKW Angled Outer Screw Inner Hole to Inner Screw Inner Screw Inner Screw Inner Needle Adapter x1; USB Type-C cable x1; Touchpad x1.
