Features

Built-in ExpressLRS Backpack
High-efficiency cooling system
Wifi and Bluetooth support
Packet rates up to F-1000Hz
T-antenna included

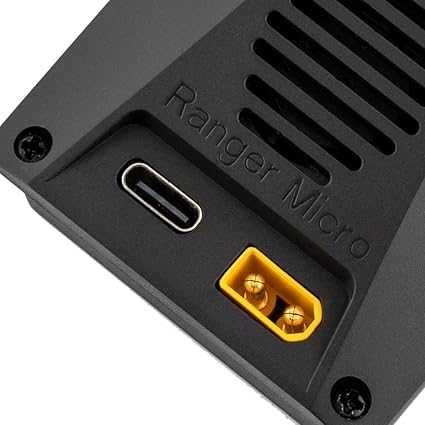

With the Micro connector, support TX16S MKII and TX12 MKII radio

Specification

Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate:
500Hz
F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)

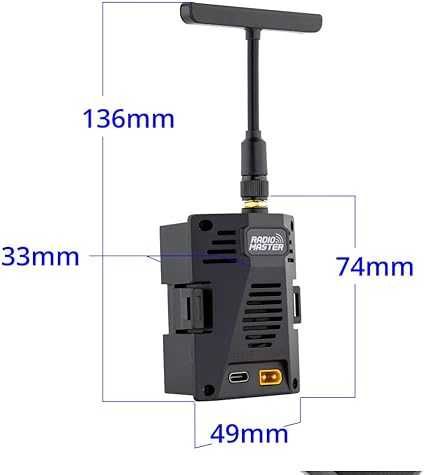

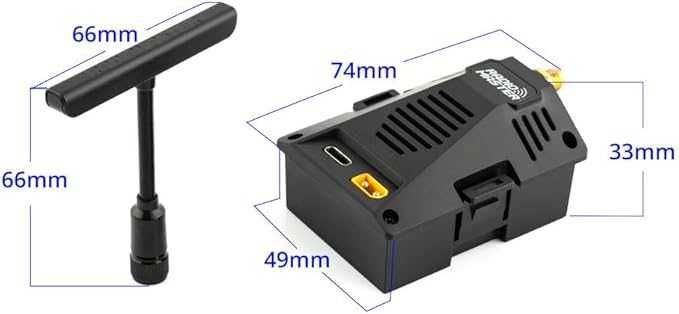

Dimension:
136 x 49 x 33mm (with T antenna)
74 x 49 x 33mm (without antenna)
