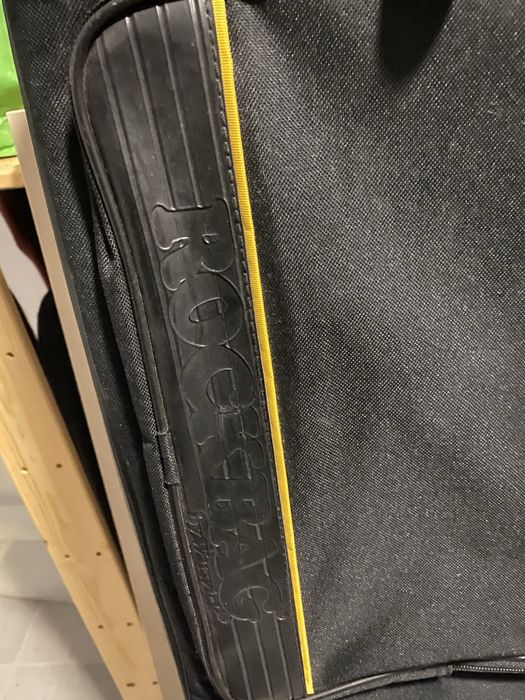

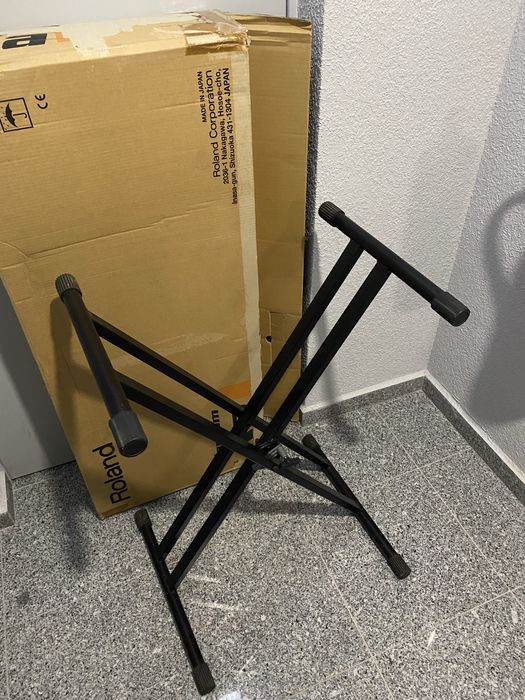

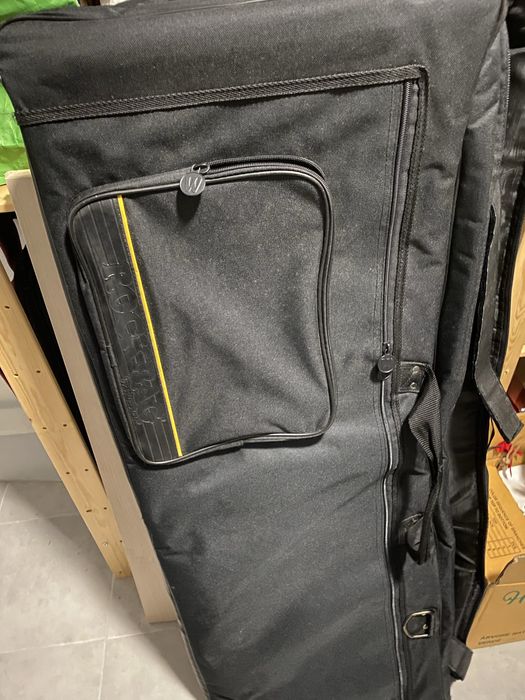

Inclui mala de transporte e suporte.

Especificações da workstation:

Keys: 61-key velocity-sensitive (no aftertouch)
Action: Unweighted
Sound Generation

Maximum Polyphony: 128 voices (shared with sampling section)
Multitimbrality: 16 parts
Sound Engine: XV-series with cross-modulation (FM) capabilities
Wave Memory: 64MB (16-bit linear equivalent)
Waveforms: 1,228 PCM waveforms
Patch Structures: 10 types available
Memory Allocation

Preset Memory
Patches: 768 + 256 (GM2 compatible)
Rhythm Sets: 36 + 9 (GM2 compatible)
Performances: 64
User Memory
Patches: 256
Rhythm Sets: 32
Performances: 64
Card Memory (PC Card)
Patches: 256
Rhythm Sets: 32
Performances: 64
Effects Processing

Multi-Effects: 3 systems, 78 algorithm types
Chorus: 3 types
Reverb: 5 types
Input Effects: 6 types (for sampling)
Mastering Effects: 3-band compressor/limiter
Special Effects: COSM and RSS processing included
Sampling System

Data Format: 16-bit linear (WAV/AIFF file support)
Sampling Frequency: 44.1kHz (fixed)
Base Sampling Time: 47 seconds mono / 23.5 seconds stereo (4MB base memory)
Expanded Sampling Time: 102 minutes mono / 51 minutes stereo (with 516MB expansion)
User Sample Capacity: 2,000 samples maximum (approximately 16MB total)
Card Sample Capacity: 7,000 samples (PC card storage)
Special Features: Skip-back sampling, Auto Divide function
Sequencer Specifications

Tracks: 16 phrase tracks (16 MIDI channels each) + 1 tempo track + 1 beat track
Patterns: 100 available
Resolution: 480 TPQN (Ticks Per Quarter Note)
Tempo Range: 5-300 BPM
Note Capacity: Approximately 400,000 notes
Maximum Song Length: 9,998 measures
Recording Methods: Real-time and step recording
File Formats: SVQ, MRC, Standard MIDI File (Format 0 and 1)
Pattern and Arpeggio Systems

Arpeggiator
Preset Arpeggios: 128
User Arpeggios: 128
Rhythm Patterns
Preset Patterns: 256 (organized in 32 groups)
User Patterns: 256 (organized in 32 groups)
Quantization Templates: 71 musical style templates
Chord Memory
Preset Chords: 64
User Chords: 64
Display and User Interface/ Control Elements

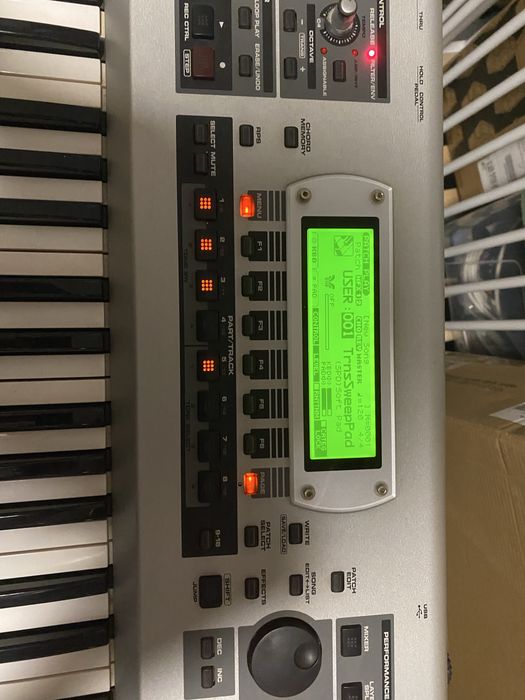

Display: 240 x 64 pixel monochrome LCD with backlight
Soft Keys: Aligned with on-screen functions
Performance Pads: 10 illuminated pads (trigger/category/numeric functions). Pads lack velocity and pressure sensitivity
Pitch Bend/Modulation: Dedicated lever
Control Knobs: 4 assignable real-time controllers
Assignable Switches: 2
D-Beam Controller: 1 (infrared proximity controller)
Pedal Inputs: Sustain (with half-pedal recognition) and expression pedal jacks
Connectivity

Audio Connections
Main Outputs: A (MIX) L/MONO and R (1/4" phone jacks)
Auxiliary Outputs: B L and R (1/4" phone jacks)
Audio Inputs: L/MONO/MIC and R (1/4" phone jacks with level control)
Headphone Output: 1/4" stereo phone jack
MIDI and Digital I/O
MIDI: In, Out, Thru (5-pin DIN connectors)
USB: File transfer and MIDI communication support
No digital audio I/O (S/PDIF, AES/EBU, etc.)
Expansion Capabilities

SRX Expansion: 1 slot for Roland SRX wave expansion boards
DIMM Expansion: 1 slot supporting 128MB, 256MB, or 512MB (3.3V) modules
PC Card Slot: 1 slot (SmartMedia and CompactFlash via PC card adapters)
Power

Power Supply: External 9V DC adapter (PSB-1U included)
Current Draw: 1200mA
Physical Specifications

Dimensions: 1065 x 358 x 114 mm (41-15/16" x 14-1/8" x 4-1/2")
Weight: 10.9kg (24 lbs 1 oz) excluding AC adapter
Factory Included Accessories

Owner's Manual
CD-ROM (Editor/Librarian software and USB MIDI driver)
PC Card Protector
AC Adapter (PSB-1U)
Optional Accessories

Wave Expansion: SRX Series boards
Stand: KS-12 keyboard stand
Pedals: DP-2, DP-8 pedal switches
Foot Switch: BOSS FS-5U
Expression Pedal: EV-5
Software Compatibility

Editor/Librarian System Requirements
Windows:

OS: Windows 98, 2000, ME, XP
Processor: 400MHz Pentium minimum (500MHz Pentium III recommended)
RAM: 128MB minimum (256MB+ recommended)
Macintosh:

OS: Mac OS 8.6-9.2.2, or OS X 10.2+
Processor: 233MHz G3 minimum for OS 8/9 (500MHz G3 minimum for OS X)
RAM: 128MB minimum (256MB+ recommended)
Standards Compliance

General MIDI: GM2 (General MIDI 2) system compliant
MIDI Implementation: Full MIDI specification support
