REDE
IPv6
IPv4
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

TRANSFERÊNCIA
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 867 Mbps
WiFi 4 (802.11n) TurboQAM : up to 400 Mbps
WiFi 4 (802.11n) : up to 300 Mbps

ANTENAS
External antenna x 4, Internal antenna X 2
5GHz-2 4x4
5GHz-1 2x2
2.4GHz 2x2

OPERA EM
Accesspoint, AiMeshnode, Mediabridge, Repeater, Router

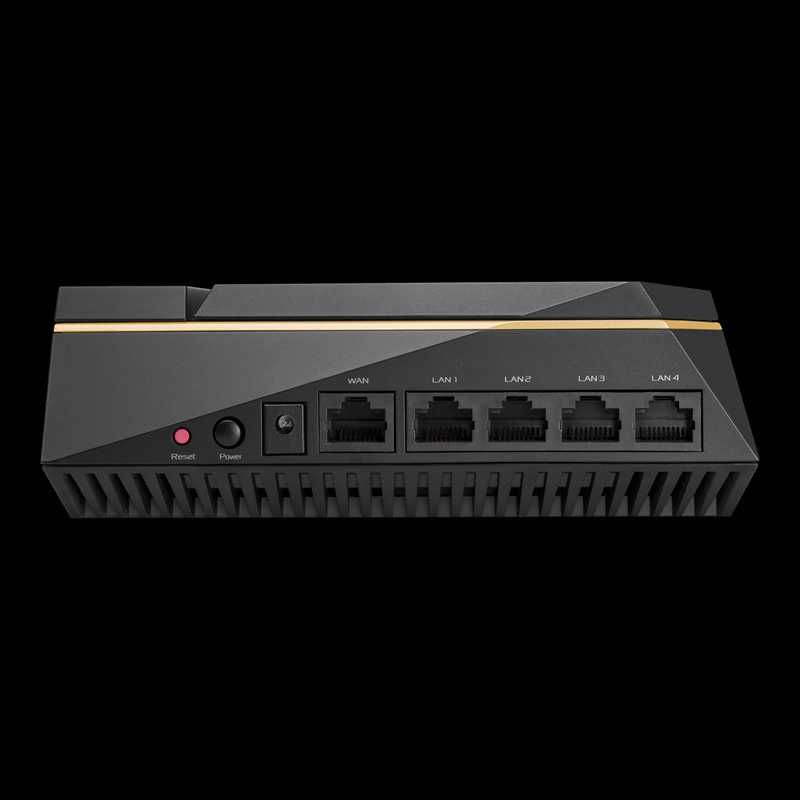

PORTAS
RJ45 for Gigabits BaseT for WAN x 1
RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1

MESH
AiMesh Node
Primary AiMesh Router

REDE GUEST
Guest Network Connection Time Limit
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x2, 5GHz-1 x2,5GHz-2 x4
Guest Network Encryption : Open system, WPA/WPA2-Personal

SEGURANÇA
SSH
Firewall
Let's Encrypt
WPS
AiProtection
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

PROTEÇÃO
• Infected Device Prevention and Blocking
• Two-Way IPS
• Malicious Site Blocking
• Router Security Assessment

VPN
VPN Server PPTP
VPN Server Open VPN
VPN Server IPSec
VPN Client PPTP
VPN Client Open VPN
VPN Client L2TP

CONTROLO DE TRAFEGO
• Website History
Traffic Analyzer
• Wireless Traffic Monitor
• Wired Traffic Monitor
• Real-time Traffic Monitor
Traffic Monitor
• Bandwidth Limiter
• Bandwidth Monitor
Adaptive QoS
-- Maximum Bandwidth Limiter Rule : 32
• Traffic Analysis Period : Daily, Weekly, Monthly

WAN
DDNS
DMZ
Port triggering
Port forwarding
3G / 4G LTE dongle
WAN Aggregation
Dual WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

LAN
Manually Assign IP Address
Wake on LAN (WOL)
LAN Link Aggregation
IPTV
IGMP Snooping
DHCP Server
• Maximum Manually Assign IP Address Rule : 64

SEM FIOS (WIRELESS)
RADIUS Client
Explicit Beamforming
Universal Beamforming
Airtime Fairness
Wireless Scheduler
WiFi MAC Address Filter
UTF-8 SSID
• Maximum MAC Filters : 64

APLICAÇÕES USB
Samba Server
Shared Folder Privileges
FTP Server
Time Machine
Media Server
AiDisk
Download Master
AiCloud
Safely Remove Disk
File System : FS_Tuxera_HFS+,FS_Tuxera_NTFS,FS_Tuxera_vFAT,FS_ext2,FS_ext3,FS_ext4

Pode ser usado para substituir o router do ISP, hipótese de clonar o Mac Address do router estando o router do ISP em modo Bridge
