Descubra o poder do Scanner3D Revopoint Miraco Plus para capturar detalhes incríveis em objetos. Uma ferramenta indispensável para projetos criativos e profissionais exigentes.

Specifications
Product Name

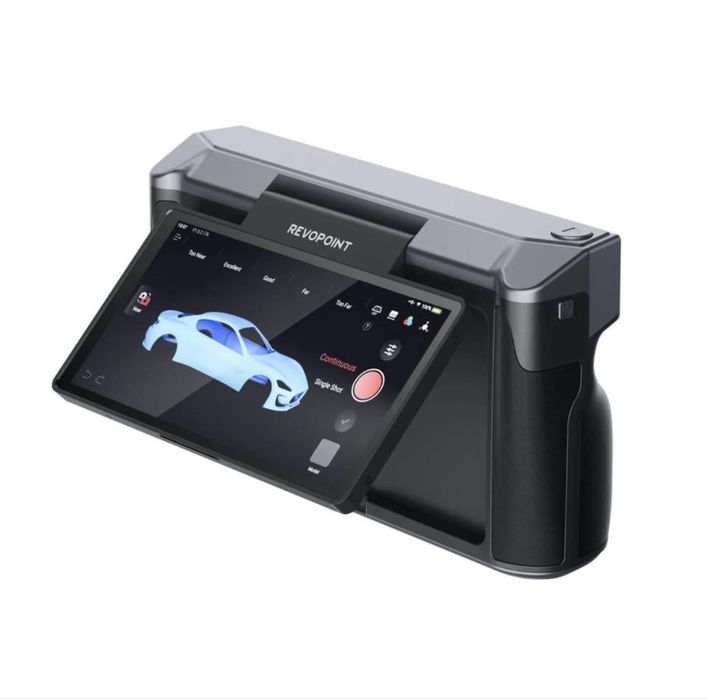

MIRACO Plus 3D Scanner

Technology
Quad-camera Infrared Structured Light
with Optical Zoom, and Ultra-resolution
Photogrammetric Metrology

Single-frame Accuracy
Up to 0.04 mm

Single-frame Precision
Up to 0.02 mm

Photogrammetric Length Accuracy
0.02 mm + 0.05 mm x L (m)
（L is the maximum measuring distance in meters.）

Battery
Internal 5000 mAh

Internal Storage
256 GB

Memory (RAM)
32 GB DDR4 Memory

Scanning Speed
Up to 20 fps

Fused Point Distance
Up to 0.05 mm

Single Capture Area
at Nearest Distance
28 x 53 mm at 100 mm

Single Capture Area
at Furthest Distance
975 x 775 mm at 1000 mm

Scanning Type
Standalone Handheld and Desktop,
and photogrammetric metrology

Working Distance
100 ~ 1000 mm

Minimum Scan Volume
10 x 10 x 10 mm

Maximum Scan Volume
4 × 4 × 4 m

Auxiliary Lighting
Infrared Fill Lights,
White Flash LEDs

Angular Field of View (H × V)
Near 40 × 30°,
Far 56 × 42°

CPU
8 core ARM A76 , 2.4 GHz, Mali G52 GPU

Position Sensors
9-axis IMU

Scanner Weight
750 g

Dimensions（L x W x H）
200 x 50 x 110 mm

Tracking Methods
Feature, Marker, Global Marker

Buttons
2

Connector Type
USB Type-C

Power Requirements
DC 7-11V, 5A
Support 65-watt Fast Charging

Wi-Fi
6

Bluetooth
4.1

Special Object Scanning
Use scanning spray for transparent,
dark, or highly reflective objects.

RGB Camera Resolution
48 Megapixels

Ready to Print 3D Models
Yes

Output File Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

User Recalibration
Yes

Supported Accessories
Large Turntable, Dual-axis Turntable, Large Calibration Board for MIRACO, Power Bank Kit, Photogrammetric Metrology Kit

Compatible Operating Systems
Windows 10/11 (64-bit),
macOS 11.0 or better

Light Type
Class 1 Infrared Light (Eye Safe)

Minimum PC Requirements
macOS
CPU: M1 Pro or better;
RAM ≥ 8 GB

Windows
CPU: Intel i7 12th Gen or better;
RAM ≥ 16 GB

Recommended PC Requirements
macOS
CPU: M3 or better;
RAM ≥ 8 GB

Windows
CPU: Intel i9 11th Gen or better;
RAM ≥ 32 GB
