ARM® Cortex®-M4F Based MCU TM4C123G LaunchPad™ Evaluation Kit

TM4C123G TIVA C Launchpad

The Tiva C Series TM4C123G LaunchPad Evaluation Kit is a low-cost evaluation platform for ARM® Cortex™-M4-based microcontrollers from Texas Instruments. The design of the Tiva C Series LaunchPad highlights the TM4C123GH6PM microcontroller with a USB 2.0 device interface and hibernation module.

The EK-TM4C123GXL also features programmable user buttons and an RGB LED for custom applications. The stackable headers of the Tiva C Series TM4C123G LaunchPad BoosterPack XL Interface make it easy and simple to expand the functionality of the Tiva C Series LaunchPad when interfacing to other peripherals with compatible BoosterPacks.

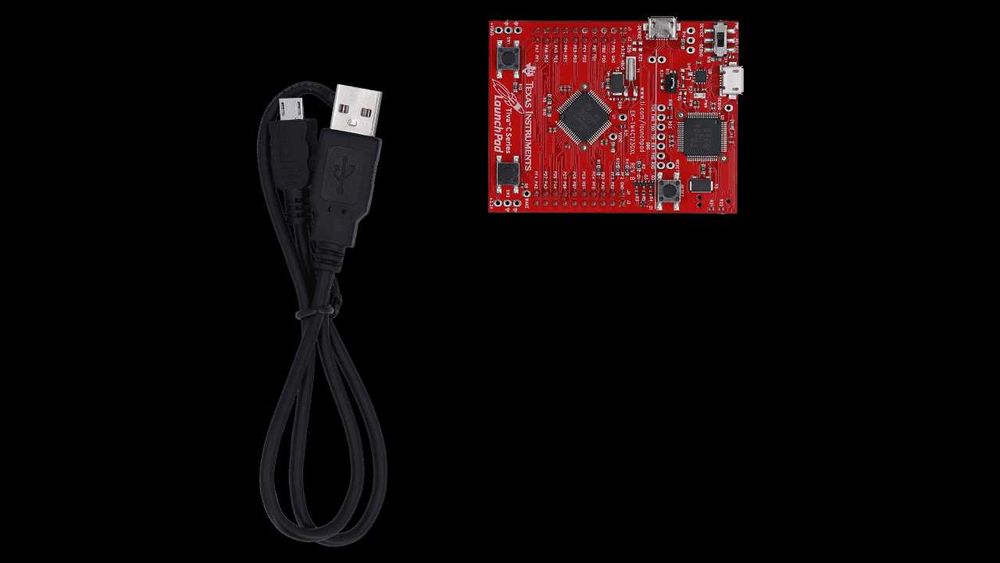

The Tiva C Series TM4C123G LaunchPad Evaluation Kit includes the following items:

Tiva C Series LaunchPad Evaluation board
USB Micro-B plug to USB-A plug cable
ReadMe First quick-start guide



The Tiva C Series TM4C123G LaunchPad evaluation board offers these features:

Tiva C Series TM4C123GH6 microcontroller
USB Micro-AB connector:
Device mode default configuration
Host/OTG modes supportable
RGB user LED
Two user switches (application/wake)
Available I/O brought out to headers on a 0.1" grid
Onboard In-Circuit Debug Interface (ICDI)
Switch-selectable power sources:
ICDI
USB device
Reset switch
Preloaded RGB quickstart application
Supported by TivaWare™ for C Series software, including the USB Library and the Peripheral Driver Library
Tiva C Series TM4C123G LaunchPad BoosterPack XL interface—features stackable headers to expand the capabilities of the 40-pin Tiva C Series LaunchPad evaluation platform



The EK-TM4C123GXL works with TivaWare for C Series, as well as several different software tool chains, including:

Keil
Sourcery CodeBench
IAR Tools
CodeComposer Studio
