Particular
Estado: Novo
Descrição
Transmissor e Receptor - RF 433 MHz (Module and Arduino)

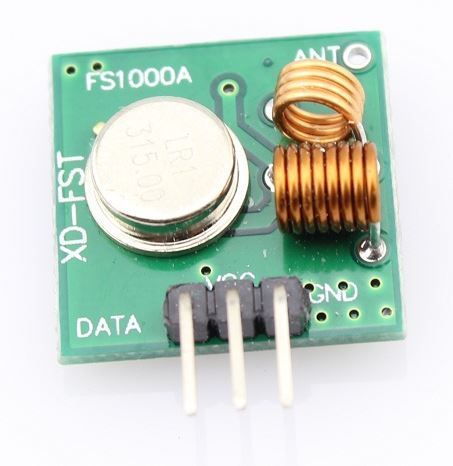

Transmitter :
Working voltage: 3V - 12V fo max. power use 12V
Working current: max Less than 40mA max , and min 9mA
Resonance mode: (SAW)
Modulation mode: ASK
Working frequency: Eve 433MHz
Transmission power: 25mW (315MHz at 12V)
Frequency error: +150kHz (max)
Velocity : less than 10Kbps
So this module will transmit up to 90m in open area .

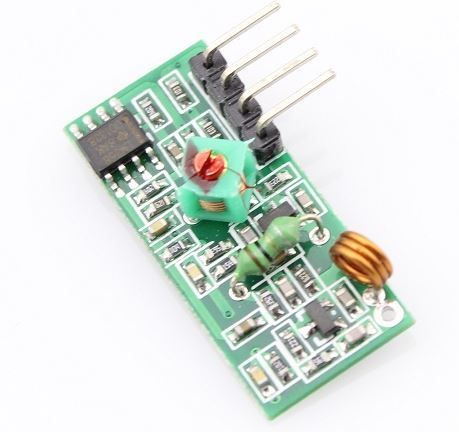

Receiver :
Working voltage: 5.0VDC +0.5V
Working current:≤5.5mA max
Working method: OOK/ASK
Working frequency: 433.92MHz
Bandwidth: 2MHz
Sensitivity: excel –100dBm (50Ω)
Transmitting velocity: < 9.6Kbps (at 315MHz and -95dBm)

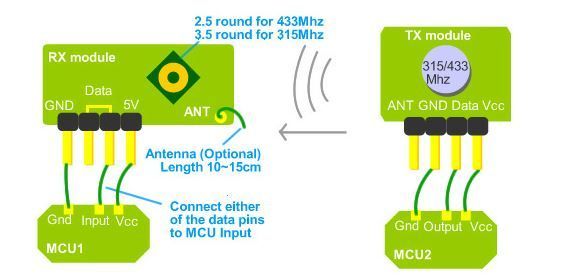

the use of an optional antenna will increase the effectiveness of your wireless communication. A simple wire will do the trick.
Transmitter :
Working voltage: 3V - 12V fo max. power use 12V
Working current: max Less than 40mA max , and min 9mA
Resonance mode: (SAW)
Modulation mode: ASK
Working frequency: Eve 433MHz
Transmission power: 25mW (315MHz at 12V)
Frequency error: +150kHz (max)
Velocity : less than 10Kbps
So this module will transmit up to 90m in open area .
Receiver :
Working voltage: 5.0VDC +0.5V
Working current:≤5.5mA max
Working method: OOK/ASK
Working frequency: 433.92MHz
Bandwidth: 2MHz
Sensitivity: excel –100dBm (50Ω)
Transmitting velocity: < 9.6Kbps (at 315MHz and -95dBm)
the use of an optional antenna will increase the effectiveness of your wireless communication. A simple wire will do the trick.
ID: 527034767
Contactar anunciante
xxx xxx xxx
Publicado 28 de abril de 2025
Transmissor e Receptor - RF 433 MHz (Module and Arduino)
5 €
